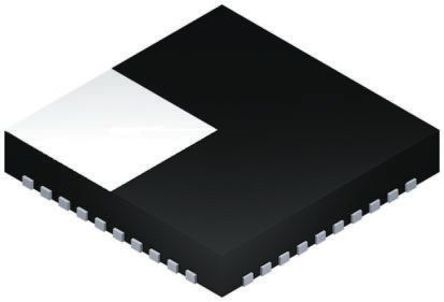

Image is for your reference only,please check specifications for details
- NCP5369MNR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC28622759
-
Category:DC to DC Converter
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET DRVR 35A 2Out Hi/Lo Side 40Pin QFN EP T/R
-
Stock Locations:
-
Availability:219 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.22
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Switch between states in a high power transistor by using this NCP5369MNR2G power driver developed by ON Semiconductor. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This gate driver has an operating temperature range of -55 °C to 150 °C.
NCP5369MNR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 40 Pin |
| Case/Package | QFN-40 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Current | 35 A |
| Number of Positions | 40 Position |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 25 V |
| Supply Voltage (Min) | 4.5 V |
| Input Voltage | 4.5V ~ 5.5V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 6 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
