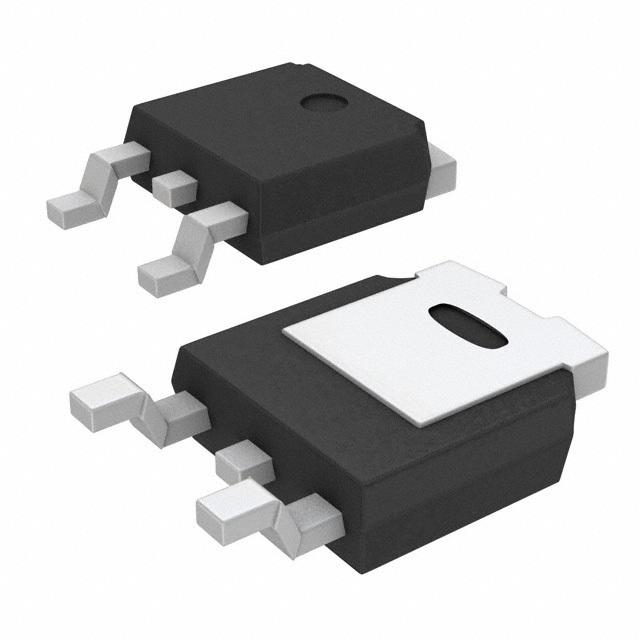

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STD35P6LLF6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.025 Ω
Power Dissipation	70 W
Threshold Voltage	2.5 V
Input Capacitance	3780 pF
Drain to Source Voltage (Vds)	60 V
Rise Time	171 ns
Maximum Forward Voltage (Max)	1.5 V
Input Capacitance (Ciss)	3780pF @25V(Vds)
Fall Time	21 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	70W (Tc)
	Show
Size-Length	6.6 mm
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
