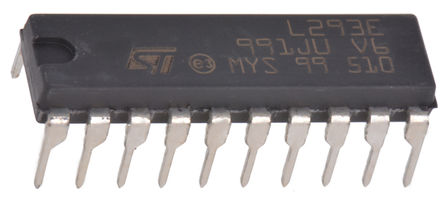

L293E - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC9131384
Category:
Motor Driver
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L293E Motor Driver/Controller, Full Bridge, 4.5V to 36V supply, 36V/1A/4Outputs, DIP-20
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.32

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L293E is a quad push-pull Driver, capable of delivering output currents to 1A per channel. Each channel is controlled by a TTL-compatible logic input and each pair of drivers (a full bridge) is equipped with an inhibit input which turns off all four transistors. A separate supply input is provided for the logic so that it may be run off a lower voltage to reduce dissipation. Additionally, the L293E has external connection of sensing resistors, for switch-mode control. The L293E both use the four centre pins to conduct heat to the printed circuit board.
Output Current 1A Per Channel
Peak Output Current 2A Per Channel (Non-repetitive)
Inhibit Facility
High Noise Immunity
Separate Logic Supply
Over-temperature Protection

Show

L293E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Supply Voltage (DC)	36.0V (max)
Number of Outputs	4 Output
Output Voltage	36 V
Output Current	1 A
Number of Channels	4 Channel
Number of Positions	20 Position
Power Dissipation	5000 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5000 mW
Supply Voltage	4.5V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	24.8 mm
Size-Width	7.1 mm
Size-Height	5.1 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
