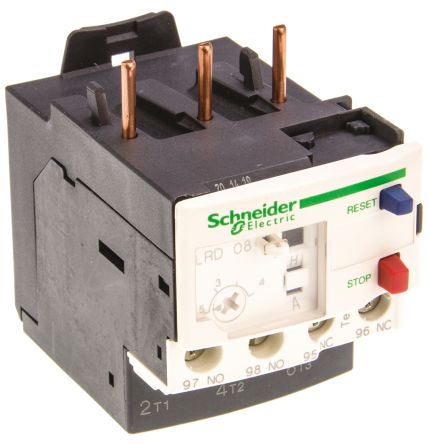

Image is for your reference only,please check specifications for details
- LRD08 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC16777896
-
Category:Industrial Relay
-
Datasheet:Datasheet 3D Model
-
Description:SCHNEIDER ELECTRIC / TELEMECANIQUE LRD08 Overload Relay, TeSys D, Thermal, 2.5A, 4A
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Sealable cover
- Manual/Auto reset
- 1 NO + 1 NC auxiliary
- Local trip indication
LRD08 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Circuits | 1 Circuit |
| Contact Current Rating | 4 A |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 690 VAC |
| Supply Voltage (Max) | 690 V |
| Show | |
| Size-Length | 123 mm |
| Size-Width | 45 mm |
| Size-Height | 51 mm |
| Weight | 0.124 kg |
| Operating Temperature | -20℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
