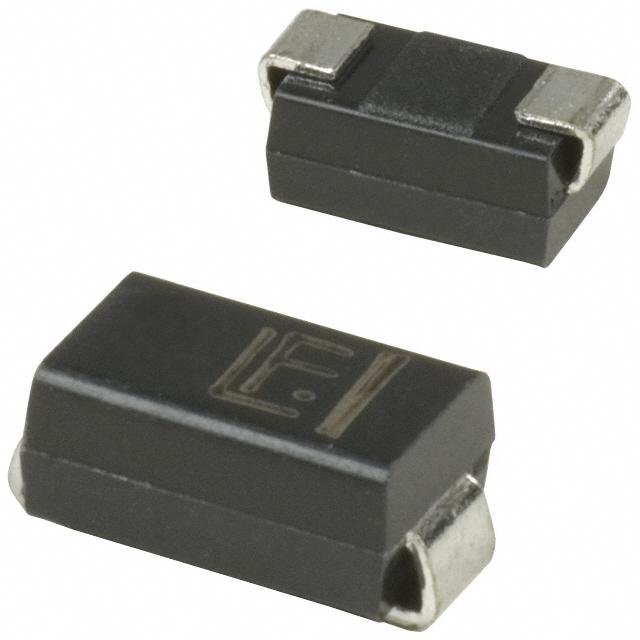

- SMAJ58CA - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC2664520
-
Category:TVS Diode
-
Package:DO-214AC-2
-
Datasheet:Datasheet 3D Model
-
Description:Trans Voltage Suppressor Diode, 400W, 58V V(RWM), Bidirectional, 1Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMA, 2Pin
-
Stock Locations:
-
Availability:2,184 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.12
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SMAJ58CA from Littelfuse is a SMAJ series 400W, surface mount bidirectional transient voltage suppression diode in DO-214AA package. It features excellent clamping capability, glass passivated junction, low inductance, low profile package, built-in strain relief and fast response time of typically less than 1.0ps from 0Vs to VBR min. The peak pulse power dissipation (PPPM) is 400W at TA=25°C, 10/1000µs waveform, 0.01% repetition rate (duty cycle). This SMAJ series transient voltage suppression diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits.
- Reverse stand off voltage (VR) of 58V and maximum reverse leakage (IR) of 1µA at VR
- Breakdown voltage (VBR) of 64.4V minimum, 71.2V maximum at 1mA test current (IT)
- Maximum clamping voltage (VC) of 93.6V at IPP and maximum peak pulse current (IPP) of 4.3A
- Power dissipation (PD) of 3.3W on infinite heat sink at TL=50°C
- Typical failure mode is short from over specified voltage or current
- UL E230531 approved, plastic package is flammability rated V-0 per UL standard
- IEC-61000-4-2 ESD 30KV (air), 30KV (contact) protection
- Suitable for surface mounted applications to optimize board space
- Operating temperature range from -65°C to 150°C and 260°C/40sec high temperature to reflow soldering
- ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard
SMAJ58CA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AC-2 |
| Voltage Rating (DC) | 58.0 V |
| Operating Voltage | 58 V |
| Power Rating | 400 W |
| Breakdown Voltage | 67.8 V |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Power Dissipation | 3.3 W |
| Clamping Voltage | 93.6 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 71.2 V |
| Peak Pulse Power | 400 W |
| Min Breakdown Voltage | 64.4 V |
| Reverse Breakdown Voltage | 64.4 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 150℃ |
| Show | |
| Size-Length | 5.28 mm |
| Size-Width | 2.79 mm |
| Size-Height | 2.29 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2014/12/17 |
