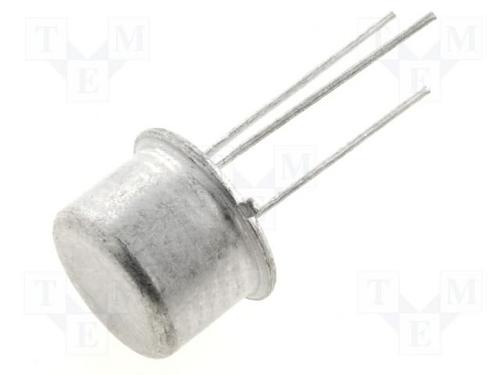

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2N1711 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-5-3
Frequency	70 MHz
Voltage Rating (DC)	75.0 V
Current Rating	500 mA
Polarity	NPN
Power Dissipation	0.8 W
Breakdown Voltage (Collector to Base)	75.0 V
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	35 @100mA, 10V
hFE Max	100
Input Power (Max)	800 mW
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	800 mW
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	1.5 mm
Material	Silicon
Operating Temperature	175℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
