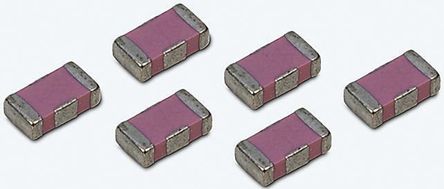

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Surface Mount 0805, W2H Series
- High current feed-through ceramic capacitors
- Low parallel inductance and broad frequency responce
- Applications include EMI suppression in regulators, filtering and PA decoupling
W2H15C1028AT1A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Voltage Rating (DC) | 50 V |
| Current Rating | 1 A |
| Insulation Resistance | 1000 mΩ |
| Capacitance | 1000 pF |
| Capacitance Tolerance | -20 % |
| Output Current | 1 A |
| Dielectric Characteristic | X7R |
| Resistance | 150 mΩ |
| DC Resistance (DCR) | 150 mΩ |
| Ripple Current | 1000 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 50 V |
| Resistance (DC Max) | 150 mΩ |
| Show | |
| Size-Length | 2.01 mm |
| Size-Width | 1.25 mm |
| Size-Height | 1.14 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
