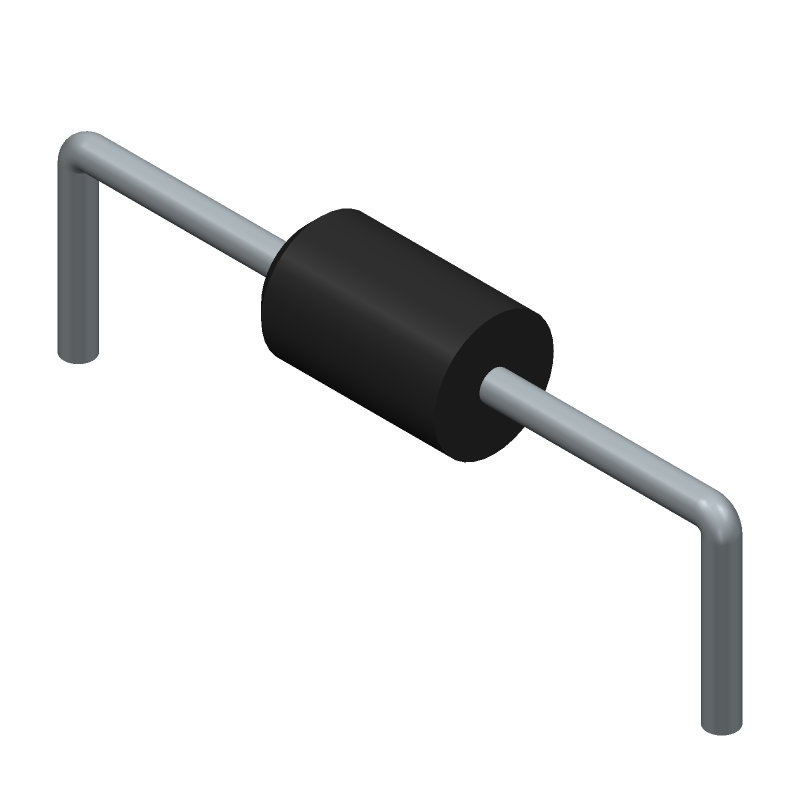

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SB340 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Number of Positions	2 Position
Forward Voltage	0.5 V
Thermal Resistance	40℃/W (RθJA)
Forward Current	3 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	500 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	3600 mW
	Show
Size-Length	9.5 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
