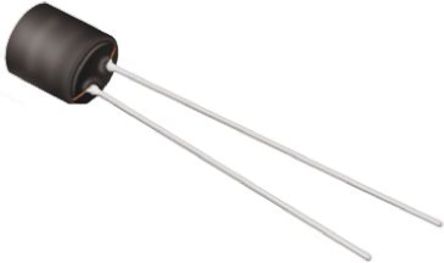

22R476C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC13363271
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 22R476C Inductor, 2200R Series, 47mH, 27mA, 169.4Ω, ± 10%
Stock Locations:
Availability:
936 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 22R476C is a 47mH Radial Lead Inductor with a MIL-I-23053/5 class I sleeving and fully hot dipped tinned leads. This 2200R series miniature size through hole PCB mount unshielded inductor features low DC resistance and backward compatible with Sn/Pb soldering systems. It is a general purpose range of inductor suitable for low to medium current applications. Its small footprint makes it ideal for high density applications where a chip inductor will not cope with the power requirement.
-25 to 70°C Operating temperature range

Show

22R476C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Current Rating	27 mA
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	47 mH
Self Resonant Frequency	250 kHz
Q-Factor	80.0
Resistance	169.4 Ω
Resonant Frequency	250 kHz
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤169.4 Ω
Current Rating (DC)	27 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Resistance (DC Max)	169.4 Ω
	Show
Size-Length	7.7 mm
Size-Height	10.5 mm
Lead Length	35 mm
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
