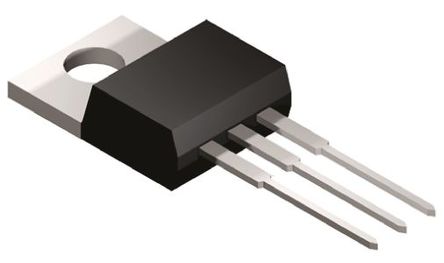

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Do you require the advantages of traditional transistors coupled with the switching benefits of power MOSFETs? STMicroelectronics" STP35N65M5 power MOSFET can provide a solution. Its maximum power dissipation is 160000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This N channel MOSFET transistor operates in enhancement mode. This device is made with mdmesh technology. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C.
STP35N65M5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Drain to Source Resistance (on) (Rds) | 0.085 Ω |
| Polarity | N-Channel |
| Power Dissipation | 160 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 650 V |
| Continuous Drain Current (Ids) | 27A |
| Rise Time | 12 ns |
| Input Capacitance (Ciss) | 3750pF @100V(Vds) |
| Input Power (Max) | 160 W |
| Fall Time | 16 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 160W (Tc) |
| Show | |
| Size-Length | 10.4 mm |
| Size-Width | 4.6 mm |
| Size-Height | 15.75 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
