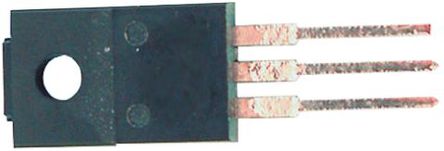

STF23NM50N - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC13700800
Category:
MOSFET, MOSFET Transistor
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Single N-Channel 500V 0.19Ω 45NC 30W Silicon Through Hole Mosfet - TO-220FP
Stock Locations:
Availability:
4,844 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.18

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STF23NM50N is a MDmesh™ II N-channel Power MOSFET made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to strip layout to yields one of lowest ON-resistance and gate charge. It is suitable for the most demanding high efficiency converters.
100% Avalanche tested
Low input capacitance and gate charge
Low gate input resistance

Show

STF23NM50N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.162 Ω
Polarity	N-Channel
Power Dissipation	30 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	500 V
Rise Time	19 ns
Input Capacitance (Ciss)	1330pF @50V(Vds)
Input Power (Max)	30 W
Fall Time	29 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	30W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	16.4 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
