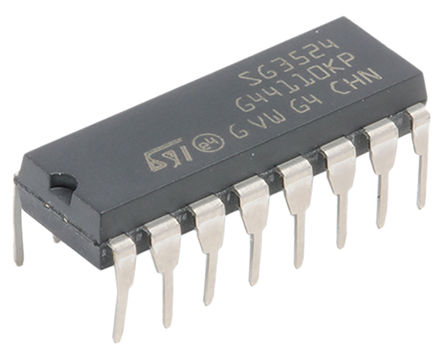

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SG3524N is a Regulating Pulse Width Modulator incorporates on a single monolithic chip all the function required for the construction of regulating power supplies inverters or switching regulators. It can also be used as the control element for high power-output applications. It is designed for switching regulators of polarity, transformer-coupled DC-to-DC converters, transformerless voltage doublers and polarity converter applications employing fixed-frequency, pulse-width modulation techniques. The dual alternating outputs allows either single-ended or push-pull applications.
Complete PWM power control circuitry
Uncommitted outputs for single-ended or push pull applications
8mA Typical low standby current
1% Maximum temperature variation of reference voltage

Show

SG3524N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Frequency	300 kHz
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Input Voltage (DC)	40.0 V
Output Voltage	18 V
Output Current	100 mA
Number of Positions	16 Position
Power Dissipation	1 W
Quiescent Current	8.00 mA
Rise Time	200 ns
Switching Frequency	300 kHz
Thermal Resistance	80 ℃/W
Duty Cycle	45 %
Maximum Duty Cycle	45 %
Fall Time	100 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	8V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	8 V
Input Voltage	20 V
	Show
Size-Length	20 mm
Size-Width	7.1 mm
Size-Height	5.1 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
