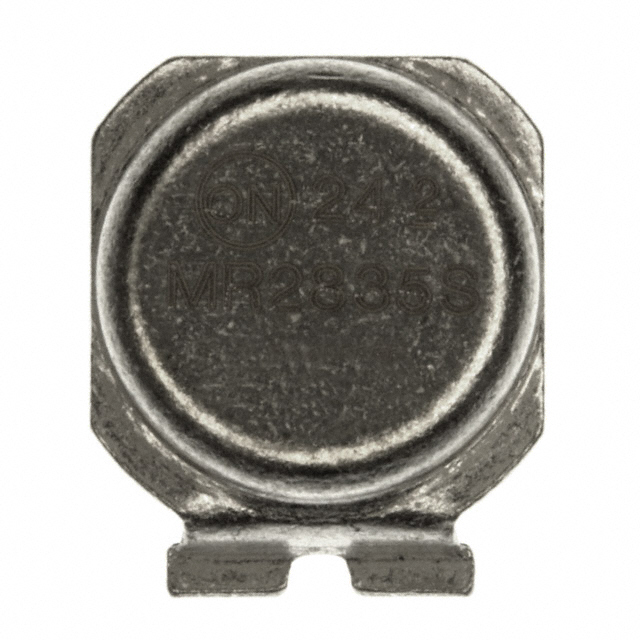

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The overvoltage transient suppressor is designed for applications requiring a diode with reverse avalanche characteristics for use as reverse power transient suppressor. Developed to suppress transients in the automotive system, this device operates in reverse mode as power zener diode and will protect expensive modules such as ignition, injection and autoblocking systems from overvoltage conditions.
Features
• High Power Capability
• Economical
• This is a Pb−Free Device

Show

MR2835SKG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	460-02
Voltage Rating (DC)	23.0 V
Operating Voltage	20 V
Breakdown Voltage	24 V
Max Repetitive Reverse Voltage (Vrrm)	20V
Test Current	100 mA
Min Breakdown Voltage	24 V
Reverse Breakdown Voltage	24 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 150℃
	Show
Size-Length	9.90 mm
Size-Width	9.50 mm
Size-Height	5.60 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
