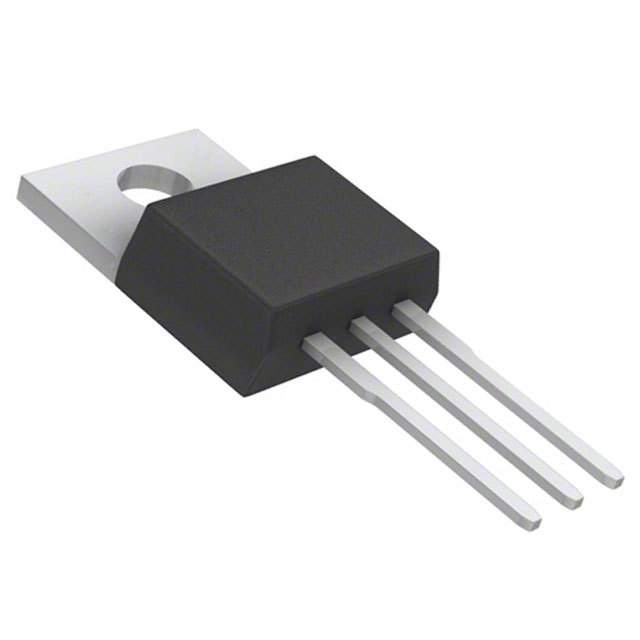

Image is for your reference only,please check specifications for details

LM338T - TI
Manufacturer:
TI
ManyChip's Part#:
MC7466996
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Standard Regulator Pos 1.2V to 32V 5A 3Pin(3+Tab) TO-220 Standard Regulator Pos 1.2V to 32V 5A 3Pin(3+Tab) TO-220
Stock Locations:
Availability:
10,905 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.68

Updated at 03/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM338T adjustable 3 terminal positive voltage regulator is capable of supplying in excess of 5A over a 1.2V to 32V output range. this device is exceptionally easy to use and requires only 2 resistors to set the output voltage. Careful circuit design has resulted in outstanding load and line regulation comparable to many commercial power supplies. A unique feature of the LM338T is time dependent current limiting. The current limit circuitry allows peak currents of up to 12A to be drawn from the regulator for short periods of time. This allows the LM338T to be used with heavy transient loads and speeds start up under full load conditions. Under sustained loading conditions, the current limit decreases to a safe value protecting the regulator. Also included on the chip are thermal overload protection and safe area protection for the power transistor. Overload protection remains functional even if the adjustment pin is accidentally disconnected.
Guaranteed 7A peak output current
Guaranteed 5A output current
Adjustable output down to 1.2V
Guaranteed thermal regulation
Current limit constant with temperature
P+ Product enhancement tested
Output is short circuit protected

Show

LM338T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	40.0V (max)
Current Rating	5.00 A
Number of Outputs	1 Output
Output Voltage	1.2V ~ 32V
Output Current	5 A
Number of Positions	3 Position
Power Dissipation	25 W
Quiescent Current	3.00 mA
Output Capacitor Type	Ceramic
voltage rating	2.70 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	40 V
Input Voltage (Min)	4.2 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.2 V
Output Current (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	25000 mW
Input Voltage	4.2V ~ 40V
	Show
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
