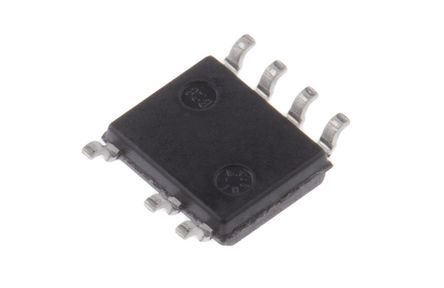

Image is for your reference only,please check specifications for details
- LNK306DN - Power Integrations
-
Manufacturer:Power Integrations
-
ManyChip's Part#:MC10077185
-
Category:AC to DC Converter, AC/DC Power Module
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:AC-DC Off-Line Switcher IC, Buck-Boost, Flyback, 85VAC - 265VAC, 66kHz, 360mA output, SOIC-8
-
Stock Locations:
-
Availability:746 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.8
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LNK306DN is a LinkSwitch-TN lowest component count, Energy-efficient Off-line Switcher IC. It is specifically designed to replace all linear and capacitor-fed (cap dropper) non-isolated power supplies in the under 360mA output current range at equal system cost while offering much higher performance and energy efficiency. This device integrate a 700V power MOSFET, oscillator, simple on/off control scheme, a high-voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry onto a monolithic IC. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias supply and associated circuitry in buck or flyback converters. The fully integrated auto-restart circuit in the safely limits output power during fault conditions such as short-circuit or open loop, reducing component count and system-level load protection cost.
- Lowest component count buck converter solution
- Uses a simplified controller without auto-restart
- Tight tolerances and negligible temperature variation
- Supports buck, buck-boost and flyback topologies
- Excellent line and load regulation even with typical configuration
- High bandwidth provides fast turn-on with no overshoot
- Current limit operation rejects line ripple
- Universal input voltage range (85 to 265VAC)
- Built-in current limit and hysteretic thermal protection
- Higher efficiency than passive solutions
- Higher power factor than capacitor-fed solutions
- Entirely manufacturable in SMD
LNK306DN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 66.0 kHz |
| Supply Voltage (DC) | 374V (max) |
| Power Rating | 0.08 W |
| Number of Outputs | 1 Output |
| Output Voltage | 85.265 V |
| Output Current | 225 mA |
| Breakdown Voltage | 700 V |
| Supply Current | 250 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Switching Frequency | 66 kHz |
| Duty Cycle | 69 % |
| Input Voltage (AC Max) | 265 v |
| Input Voltage (AC Min) | 85 v |
| Maximum Duty Cycle | 72 % |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.9 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
