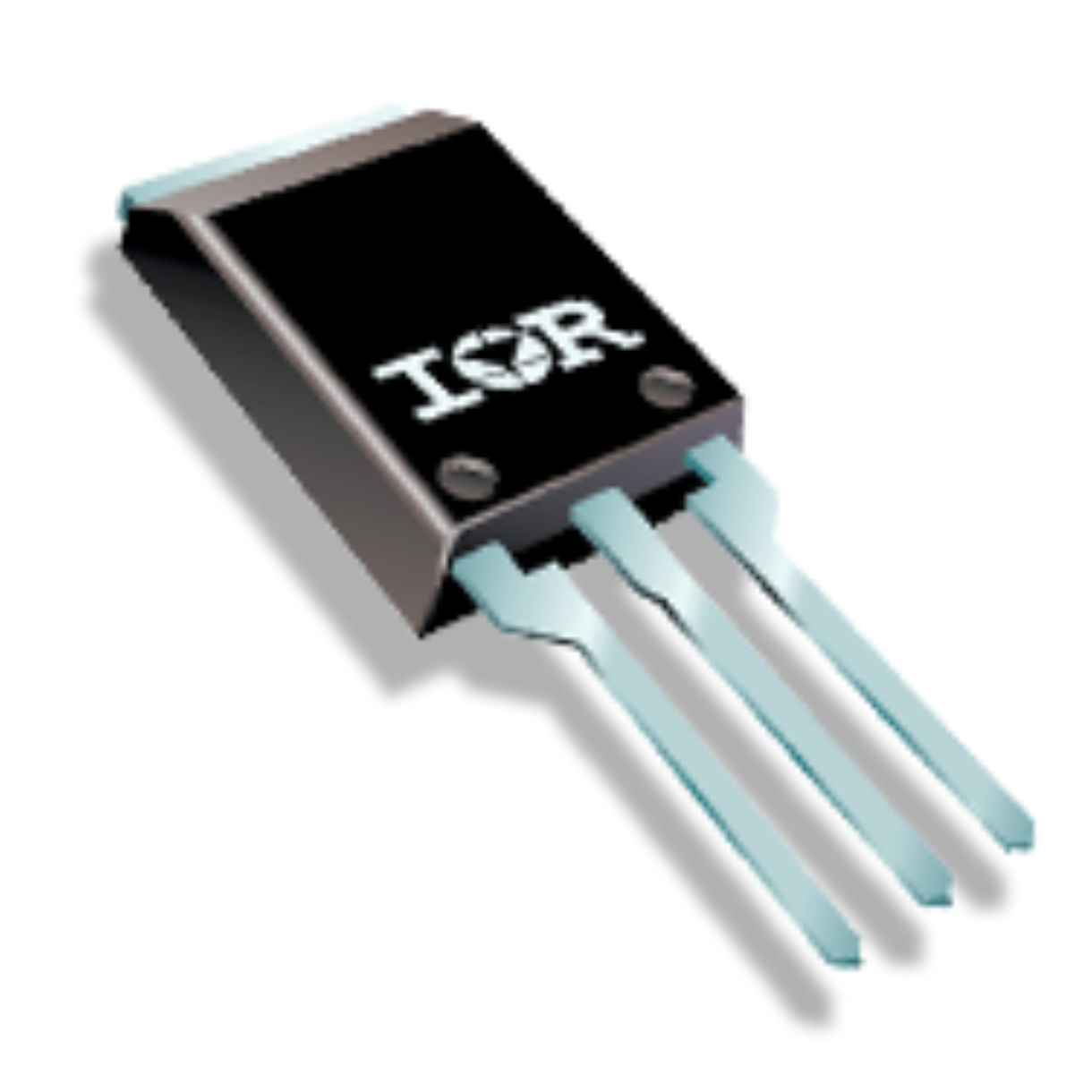

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRFBA1405P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	SUPER-220
Polarity	N-CH
Power Dissipation	330W (Tc)
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	174A
Input Capacitance (Ciss)	5480pF @25V(Vds)
Power Dissipation (Max)	330W (Tc)
	Show
Operating Temperature	-40℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
