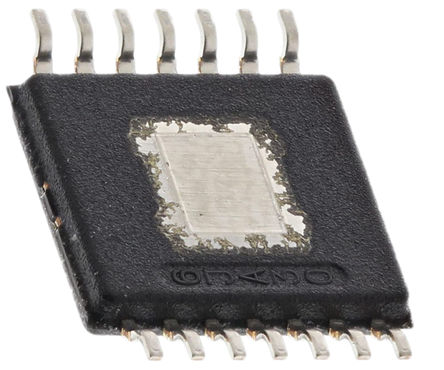

Image is for your reference only,please check specifications for details
- TPS55340PWP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4505657
-
Category:DC to DC Converter
-
Package:HTSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.9V to 32V Step Up Single-Out 2.9V to 38V 5A 14Pin HTSSOP EP Tube
-
Stock Locations:
-
Availability:37 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.24
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS55340PWP is a monolithic, non-synchronous, Switching Regulator with integrated 5A, 40V power switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC and isolated flyback. The device has a wide input voltage range to support applications with input voltage from multicell batteries or regulated 3.3, 5, 12 and 24V power rails. The TPS55340PWP regulates the output voltage with current mode PWM (pulse width modulation) control and has an internal oscillator. The switching frequency of PWM is set by either an external resistor or by synchronizing to an external clock signal. The user can program the switching frequency from 100kHz to 1.2MHz. The device features a programmable soft-start function to limit inrush current during start-up and has other built-in protection features including cycle-by-cycle over-current limit and thermal shutdown.
- Internal 5A, 40V low-side MOSFET switch
- ±0.7% Reference voltage
- 0.5mA Operating quiescent current
- 2.7µA Shutdown supply current
- Fixed frequency current mode PWM control
- Frequency adjustable from 100kHz to 1.2MHz
- Synchronization capability to external clock
- Adjustable soft-start time
- Pulse skipping for higher efficiency at light loads
- Cycle-by-cycle current limit, thermal shutdown and UVLO protection
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPS55340PWP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | HTSSOP-14 |
| Number of Outputs | 1 Output |
| Output Voltage | 2.9V ~ 38V |
| Output Current | 5 A |
| Number of Positions | 14 Position |
| Quiescent Current | 500 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 1.2 MHz |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 2.9 V |
| Output Voltage (Max) | 38 V |
| Output Voltage (Min) | 2.9 V |
| Output Current (Max) | 5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.9V ~ 32V |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
