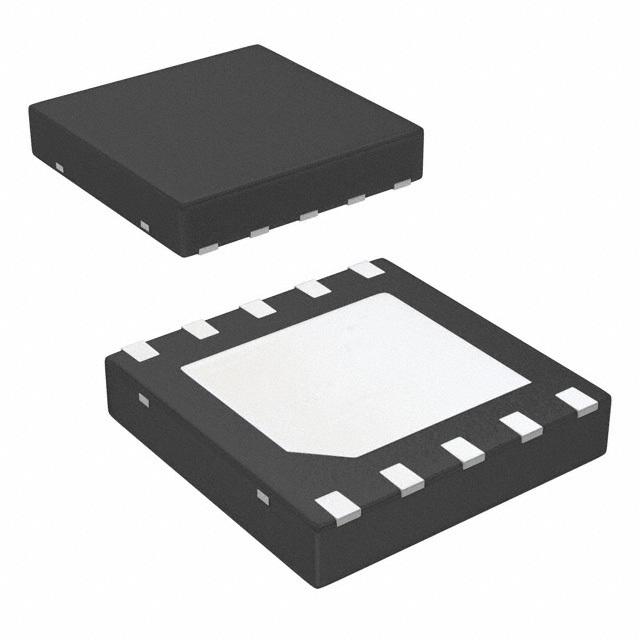

Image is for your reference only,please check specifications for details

LM5101ASD - TI
Manufacturer:
TI
ManyChip's Part#:
MC114858529
Category:
FET Driver
Package:
WDFN-10
Datasheet:
Datasheet 3D Model
Description:
3A High Voltage High-Side and Low-Side Gate Driver 10-WSON -40℃ to 125℃
Stock Locations:
Availability:
672 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The LM5100A/B/C and LM5101A/B/C High Voltage Gate Drivers are designed to drive both the high-side
and the low-side N-Channel MOSFETs in a synchronous buck or a half-bridge configuration.
FEATURES
• Drives Both a High-side and Low-side N Channel MOSFETs
• Independent High and Low Driver Logic Inputs
• Bootstrap Supply Voltage up to 118V DC
• Fast Propagation Times (25 ns Typical)
• Drives 1000 pF Load with 8 ns Rise and Fall Times
• Excellent Propagation Delay Matching (3 ns typical)
• Supply Rail Under-voltage Lockout
• Low Power Consumption
• Pin Compatible with HIP2100/HIP2101
TYPICAL APPLICATIONS
• Current Fed Push-pull Converters
• Half and Full Bridge Power Converters
• Synchronous Buck Converters
• Two Switch Forward Power Converters
• Forward with Active Clamp Converters

Show

LM5101ASD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WDFN-10
Rise/Fall Time	430ns, 260ns
Number of Outputs	2 Output
Output Voltage	118 V
Output Current	3 A
Quiescent Current	200 µA
Rise Time	430 ns
Fall Time	260 ns
Fall Time (Max)	260 ns
Fall Time (Max)	430 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	9V ~ 14V
Supply Voltage (Max)	14 V
Supply Voltage (Min)	9 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
