Description
- Description
- The AM1808 ARM Microprocessor is a low-power applications processor based on ARM926EJ-S.
- The device enables original-equipment manufacturers (OEMs) and original-design manufacturers (ODMs)
- to quickly bring to market devices featuring robust operating systems support, rich user interfaces, and
- high processing performance life through the maximum flexibility of a fully integrated mixed processor
- solution.
- AM1808 ARM Microprocessor
- Features
- • 375- and 456-MHz ARM926EJ-S™ RISC MPU
- • ARM926EJ-S Core
- – 32-Bit and 16-Bit ( Thumb® ) Instructions
- – Single-Cycle MAC
- – ARM Jazelle® Technology
- – Embedded ICE-RT™ for Real-Time Debug
- • ARM9™ Memory Architecture
- – 16KB of Instruction Cache
- – 16KB of Data Cache
- – 8KB of RAM (Vector Table)
- – 64KB of ROM
- • Enhanced Direct Memory Access Controller 3 (EDMA3):
- – 2 Channel Controllers
- – 3 Transfer Controllers
- – 64 Independent DMA Channels
- – 16 Quick DMA Channels
- – Programmable Transfer Burst Size
- • 128KB of On-Chip Memory
- • 1.8-V or 3.3-V LVCMOS I/Os (Except for USB and DDR2 Interfaces)
- • Two External Memory Interfaces:
- – EMIFA
- • NOR (8- or 16-Bit-Wide Data)
- • NAND (8- or 16-Bit-Wide Data)
- • 16-Bit SDRAM with 128-MB Address Space
- – DDR2/Mobile DDR Memory Controller with one of the following:
- • 16-Bit DDR2 SDRAM with 256-MB Address Space
- • 16-Bit mDDR SDRAM with 256-MB Address Space
- • Three Configurable 16550-Type UART Modules:
- – With Modem Control Signals
- – 16-Byte FIFO
- – 16x or 13x Oversampling Option
- • LCD Controller
- • Two Serial Peripheral Interfaces (SPIs) Each with Multiple Chip Selects
- • Two Multimedia Card (MMC)/Secure Digital (SD)
- Card Interfaces with Secure Data I/O (SDIO) Interfaces
- • Two Master and Slave Inter-Integrated Circuits ( I2C Bus™)
- • One Host-Port Interface (HPI) with 16-Bit-Wide
- Muxed Address and Data Bus For High Bandwidth1
- Applications
- • Gaming
- • Data Concentrators
- • Medical, Healthcare, Fitness
- • Building Automation
- • Printers
- • Set Top Box
- • ePOS
- • Industrial Automation

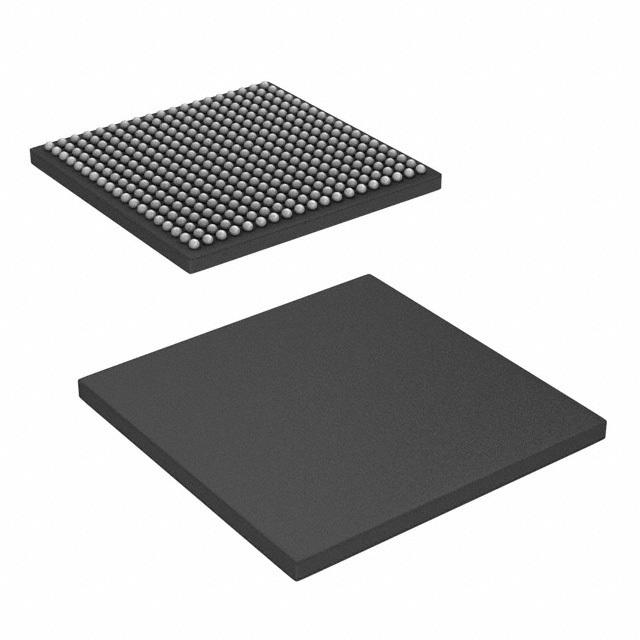

AM1808BZWTA3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 361 Pin |
| Case/Package | NFBGA-361 |
| Clock Speed | 375456 MHz |
| Number of Bits | 32 Bit |
| Number of UARTs | 3 UART |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 105℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
