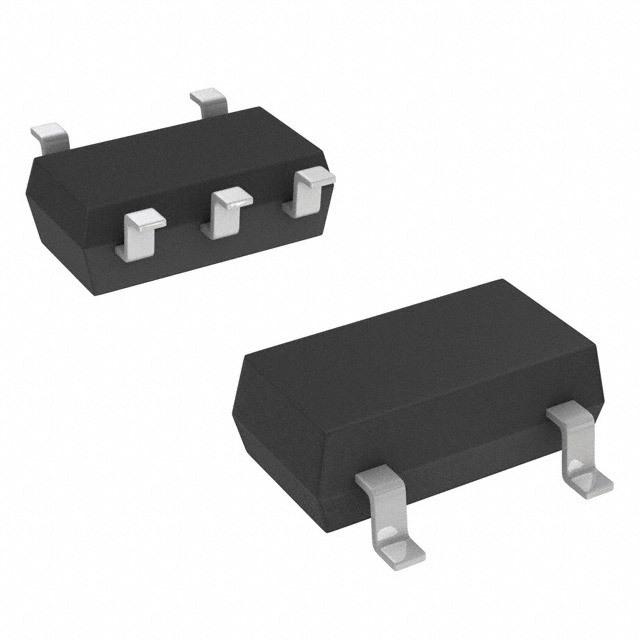

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Pre-Biased Bipolar Transistor (BJT) 2 PNP - Pre-Biased (Dual) 50V 100mA 250MHz 150mW Surface Mount UMT5

Show

UMA9NTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSSOP-5
Voltage Rating (DC)	-50.0 V
Current Rating	-50.0 mA
Power Rating	0.15 W
Polarity	PNP
Power Dissipation	150 mW
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	20 @5mA, 5V
Input Power (Max)	150 mW
DC Current Gain (hFE)	30
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	250 MHz
Power Dissipation (Max)	150 mW
	Show
Size-Length	2.0 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
