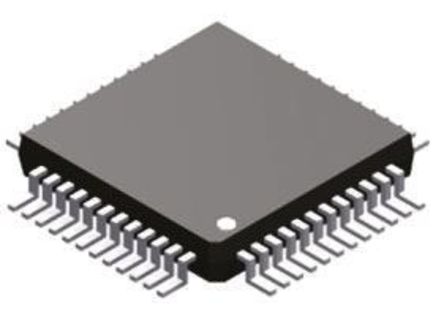

- ADV7123JSTZ240 - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC388611
-
Category:Digital to Analog, DAC IC
-
Package:LQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADV7123JSTZ240 Digital to Analog Converter, 10Bit, 330MSPS, Parallel, 3V to 3.6V, 4.75V to 5.25V, QFP, 48Pins
-
Stock Locations:
-
Availability:1,879 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 16.08
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The ADV7123 (ADV®) is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 10-bit, video DACs with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source.
- The ADV7123 has three separate 10-bit-wide input ports. A single 5 V/3.3 V power supply and clock are all that are required to make the part functional. The ADV7123 has additional video control signals, composite SYNC and BLANK.
- The ADV7123 also has a power save mode.
- The ADV7123 is fabricated in a 5 V CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation. The ADV7123 is available in a 48-lead LQFP package.
- **Product Highlights**
- 1. 330 MSPS throughput.
- 2. Guaranteed monotonic to 10 bits.
- 3. Compatible with a wide variety of high resolution color graphics systems, including RS-343A and RS-170.
- **Applications**
- Digital video systems (1600 × 1200 at 100 Hz)
- High resolution color graphics
- Digital radio modulation
- Image processing
- Instrumentation
- Video signal reconstruction
- ### Features and Benefits
- 330 MSPS throughput rate
- Triple 10-bit digital-to-analog converters (DACs)
- SFDR
- −70 dB at fCLK = 50 MHz; fOUT = 1 MHz
- −53 dB at fCLK = 140 MHz; fOUT = 40 MHz
- RS-343A-/RS-170-compatible output
- Complementary outputs
- DAC output current range: 2.0 mA to 26.5 mA
- TTL-compatible inputs
- Internal reference (1.235 V)
- Single-supply 5 V/3.3 V operation
- 48-lead LQFP package
- See data sheet for additional features
- ADV7123-EP supports defense and aerospace applications (AQEC standard)
- Download ADV7123-EP data sheet (pdf)
- Military temperature range: −55°C to +105°C
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Enhanced product change notification
- Qualification data available on request
- V62/12637 DSCC Drawing Number
ADV7123JSTZ240 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | LQFP-48 |
| Supply Voltage (DC) | 5.00V (max) |
| Number of Outputs | 3 Output |
| Supply Current | 67 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 10 Bit |
| Power Dissipation | 30 mW |
| Sample Rate | 240 Msps |
| Resolution (Bits) | 10.0 Bit |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 30 mW |
| Number of DACs | 3 DAC |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
| HK STC License | NLR |
