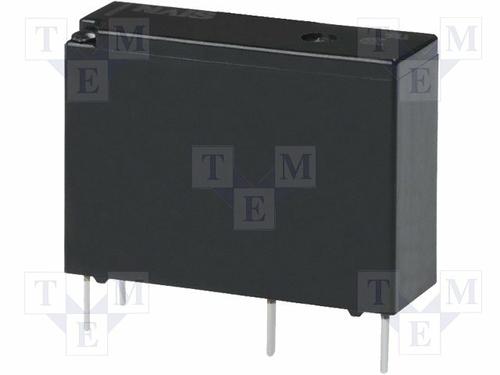

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LD-P(ALDP) series from Panasonic are slim line power relay. It offers surge withstand voltage of 10KV, 6mm minimum creepage and clearance distances between coil and contacts. Typical applications include boilers, air conditioner, refrigerator, hot water units, microwave ovens and fan heaters.
Nominal switching capacity of 5A at 277VAC
Ambient temperature range from -40°C to 85°C
Excellent heat resistance and tracking performance
20.3mm x 7mm x 15mm dimension
SPST-NO contact configuration
Selectable DC coil voltage of 5VDC, 6VDC, 9VDC, 12VDC, 18VDC and 24VDC
UL, C-UL and VDE approved

Show

ALDP124 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	PCB
Case/Package	-
Contacts Type	SPST-NO
Coil Voltage	24 VDC
Coil Current	8.3 mA
Coil Resistance	2.88 kΩ
Current Rating (Max)	5 A
Coil Voltage (DC)	24 V
Input Power (Max)	0.2 W
Switching Current (Max)	5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (AC Max)	277 V
	Show
Size-Height	15.3 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
