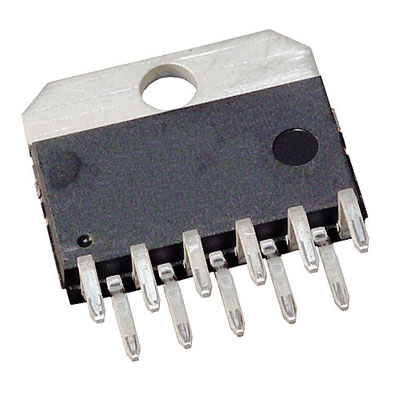

OPA549T - TI
Manufacturer:
TI
ManyChip's Part#:
MC376759
Category:
Operational Amplifier, OP Amp IC
Package:
TO-220-11
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 900kHz, 9V/µs, 8V to 60V, TO-220, 11Pins
Stock Locations:
Availability:
878 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26.3

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA549T is a high-voltage/high-current Operational Amplifier, ideal for driving a wide variety of loads. This laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current. The OPA549T operates from either single or dual supplies for design flexibility. The input common-mode range extends below the negative supply. The OPA549 is internally protected against over-temperature conditions and current overloads. In addition, the OPA549 provides an accurate, user-selected current limit. Unlike other designs which use a power resistor in series with the output current path, the OPA549T senses the load indirectly. This allows the current limit to be adjusted from 0 to 10A with a resistor/potentiometer or controlled digitally with a voltage-out or current-out digital-to-analogue Converter (DAC). The enable/status (E/S) pin provides two functions.
8A Continuous and 10A peak high output current
Wide output voltage swing
Thermal shutdown and adjustable current limit protection
Output disable control
Thermal shutdown indicator
9V/µs High slew rate
Control reference pin
Green product and no Sb/Br
