Description
- **PROGRAMMABLE CONTROLLERS ****AC/DC-INPUT MODULE ****PC CARD MODEM(PCMCIA)**

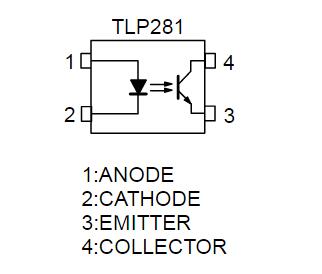

- TLP281 and TLP281-4 is a very small and thin coupler, suitable for surface mount assembly in applications such as PCMCIA Fax modem, programmable controllers. TLP281 and TLP281-4 consist of photo transistor, optically coupled to a gallium arsenide infrared emitting diode.
- Collector-Emitter Voltage : 80 V (MIN)
- Current Transfer Ratio : 50% (MIN)
- Rank GB : 100% (MIN)
- Isolation Voltage : 2500 Vrms (MIN)
- UL Recognized : UL1577 , File No. E67349
- BSI Approved : BS EN 60065: 2002,
- : BS EN 60950-1: 2002
- Certificate No. 8143, 8144
TLP281 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Rise/Fall Time | 2μs, 3μs |
| Output Voltage | 80.0 V, 80.0 V (max) |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.15 V |
| Input Current | 10.0 mA |
| Power Dissipation | 200 mW |
| Isolation Voltage | 2500 Vrms |
| Output Voltage (Max) | 80 V |
| Forward Current (Max) | 50 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 2.6 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.9 mm |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
