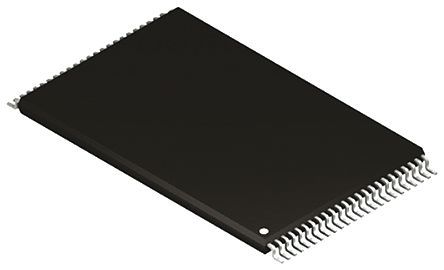

Image is for your reference only,please check specifications for details

S29AL016J70TFI020 - Spansion
Manufacturer:
Spansion
ManyChip's Part#:
MC4611500
Category:
Flash Memory, Flash
Package:
TSOP-48
Datasheet:
Datasheet 3D Model
Description:
SPANSION S29AL016J70TFI020 Flash Memory, 16Mbit, 2M x 8Bit / 1M x 16Bit, CFI, TSOP, 48Pins
Stock Locations:
Availability:
4,358 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The S29AL016J70TFI020 is a 16Mb CMOS 3V Boot Sector Flash Memory with CFI interface. The sector group protection features a hardware method of locking a sector to prevent any program or erase operations within that sector, sectors can be locked in-system or via programming equipment and temporary sector unprotect allows code changes in previously locked sectors. The device offers access time of 55ns allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable, write enable and output enable controls. The device offers two power-saving features. When addresses have been stable for a specified amount of time, the device enters the automatic sleep mode. The system can also place the device into the standby mode. Power consumption is greatly reduced in both these modes.
Fully compatible with 200nm S29AL016D
Top or bottom boot block configurations available
Compatibility with JEDEC standards
Pin out and software compatible with single-power supply flash
Superior inadvertent write protection
High performance - Access times as fast as 55ns
Cycling endurance - 1000000 cycles per sector typical
Data retention - 20 years typical
-40 to 125°C Temperature range

Show

S29AL016J70TFI020 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSOP-48
Supply Voltage (DC)	2.70V (min)
Supply Current	12 mA
Number of Positions	48 Position
Access Time	70 ns
Memory Size	2000000 B
Access Time(Max)	70 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	18.5 mm
Size-Width	12.1 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HK STC License	NLR
