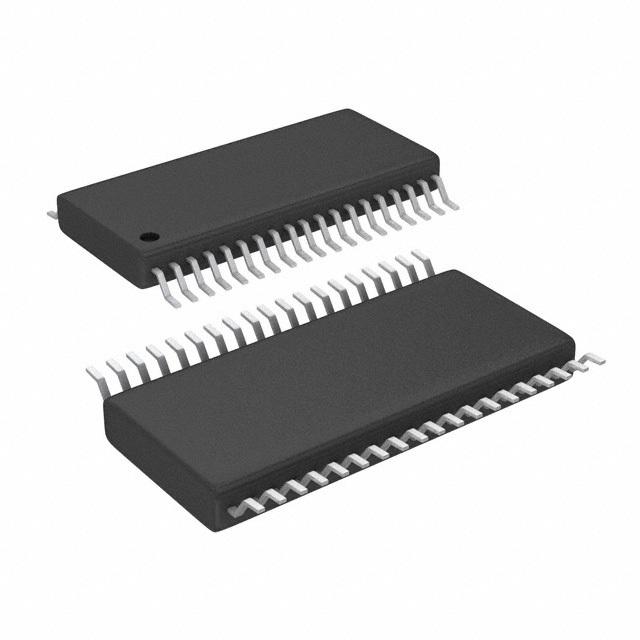

TAS5086DBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC27030500
Category:
Active Chip
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TAS5086DBT. Audio Control, Digital Audio Interface, 3V to 3.6V, I2C, Serial, TSSOP, 38Pins, 0 °C
Stock Locations:
Availability:
217 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TAS5086DBT is a 6-channel Digital Pulse-Width Modulator provides both advanced performance and a high level of system integration. It is designed to interface seamlessly with most audio digital signal processors and MPEG decoders, accepting a wide range of input data and clock formats. The TAS5086 drives six channels of speakers in either single-ended or bridge-tied load configurations that accept a 1N + 1 interface format. The TAS5086 also supports 2N + 1 power stages with the use of some external logic (e.g., TAS5112). Stereo line out in I2S format is available with either a pass-through signal (SDIN4) or an internal down mix. It uses AD modulation operating at a 384kHz switching rate for 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz data. The 8x oversampling, combined with the 4th-order noise shaper, provides a broad, flat noise floor and excellent dynamic range from 20Hz to 20kHz.
Audio input/output
Four serial audio inputs (eight channels)
Any output channel can be mapped to any output pin
Supports single-ended and bridge-tied loads
Integrated bass management
Two programmable biquads in subwoofer channel
Selectable DC blocking filters
Automated operation with easy-to-use control interface
Control interface operational without MCLK
Green product and no Sb/Br

Show

TAS5086DBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Number of Channels	6 Channel
Number of Positions	38 Position
Power Dissipation	817.16 mW
Output Power	817 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 3.6V
	Show
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
