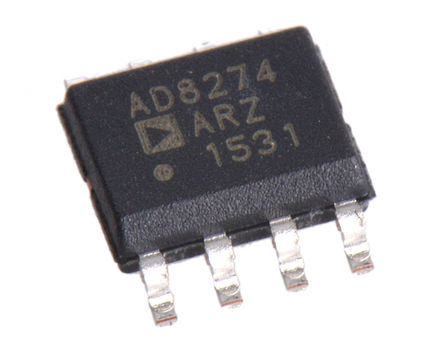

Image is for your reference only,please check specifications for details
- AD8274ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC218536
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD8274ARZ Differential Amplifier, Low Distortion, 1 Amplifiers, 700µV, 20MHz, -40℃, 85℃
-
Stock Locations:
-
Availability:247 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.15
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8274 is a difference amplifier that delivers excellent ac and dc performance. Built on Analog Devices, Inc., proprietary _i_Polar® process and laser-trimmed resistors, AD8274 achieves a breakthrough in distortion vs. current consumption and has excellent gain drift, gain accuracy, and CMRR.
- Distortion in the audio band is an extremely low 0.00025% (112 dB) at a gain of ½ and 0.00035% (109 dB) at a gain of 2 while driving a 600 Ω load.
- With supply voltages up to ±18 V (+36 V single supply), the AD8274 is well suited for measuring large industrial signals. Additionally, the part’s resistor divider architecture allows it to measure voltages beyond the supplies.
- With no external components, the AD8274 can be configured as a G = ½ or G = 2 difference amplifier. For single-ended applications that need high gain stability or low distortion performance, the AD8274 can also be configured for several gains ranging from −2 to +3.
- The excellent distortion and dc performance of the AD8274, along with its high slew rate and bandwidth, make it an excellent ADC driver. Because of the part’s high output drive, it also makes a very good cable driver.
- The AD8274 only requires 2.6 mA maximum supply current. It is specified over the industrial temperature range of −40°C to +85°C and is fully RoHS compliant. For the dual version, see the AD8273 data sheet.
- **Applications**
- ADC driver
- High performance audio
- Instrumentation amplifier building blocks
- Level translators
- Automatic test equipment
- Sine/cosine encoders
- ### Features and Benefits
- Very low distortion
- 0.00025% THD + N ( 20 kHz)
- 0.0015% THD + N (100 kHz)
- Drives 600 Ω loads
- Excellent gain accuracy
- 0.03% maximum gain error
- 2 ppm/°C maximum gain drift
- Gains of ½ or 2
- AC specifications
- 20 V/µs minimum slew rate
- 800 ns to 0.01% settling time
- High accuracy dc performance
- 83 dB minimum CMRR
- 700 µV maximum offset voltage
- 8-lead SOIC and MSOP packages
- Supply current: 2.6 mA maximum
- Supply range: ±2.5 V to ±18 V
AD8274ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 2.3 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 77 dB |
| Bandwidth | 20 MHz |
| Slew Rate | 20.0 V/μs |
| Gain Bandwidth Product | 20 MHz |
| Input Offset Voltage | 700 µV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 77 dB |
| Minimum CMRR Range | 83 dB |
| Supply Voltage | 2.5V ~ 18V |
| Supply Voltage (Max) | 30V ~ 50V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/12/17 |
