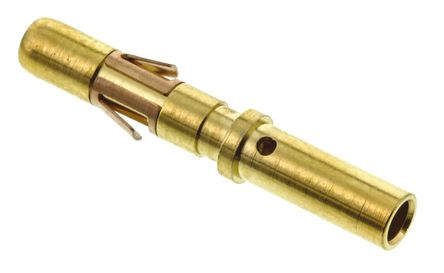

Image is for your reference only,please check specifications for details

Updated at 28/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RC16M23K from Souriau is a green colour, size 16 solid machined socket contact for TRIM TRIO connectors. This is precision solid machined crimp snap-in contact for heavy duty top performance requirements. This contact is tempered, heat treated beryllium copper locking springs assure proper locking and alignment of contacts in the housing.
Wire size range from 20AWG to 16AWG (0.52mm² to 1.5mm²)
Maximum wire diameter of 1.82mm
High conductive copper alloy with gold over nickel plate finish
0.0625inch (1.6mm) diameter contacts
Closed entry design to prevent probe damage
Current rating of 13A
Contact resistance is less than or equal to 3mohm
Operating voltage of 750Vrms
Easy mounting and dismounting

Show

RC16M23K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Gender	Female
Wire Gauge	16AWG ~ 20AWG
Contact Plating	Gold
Current Rating	13 A
Contact Resistance	3.00 mΩ
Current Rating (Max)	13 A
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	3 mΩ
	Show
Size-Length	18.2 mm
Contact Material	Copper Alloy
Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
