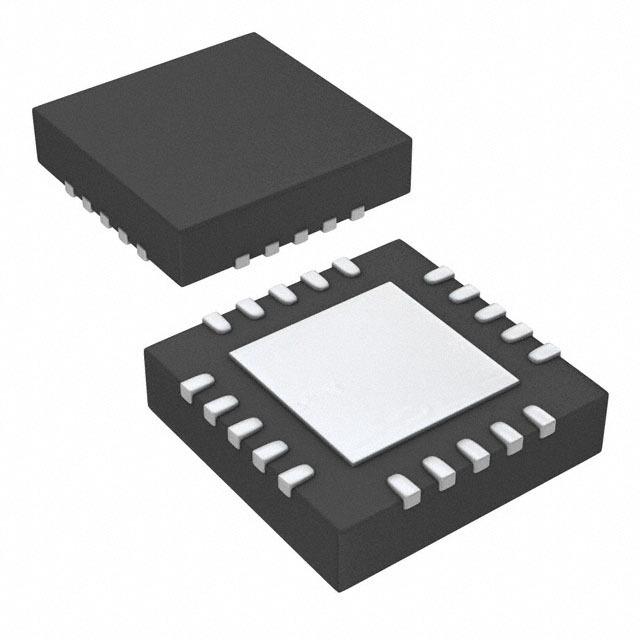

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TPS51225/B/C is a cost-effective, dual-synchronous buck controller targeted for notebook
- system-power supply solutions. It provides 5-V and 3.3-V LDOs and requires few external components. The 260-kHz VCLK output can be used to drive an external charge pump, generating gate drive voltage for the load switches without reducing the main converter efficiency. The TPS51225/B/C supports high efficiency, fast transient response and provides a combined power-good signal. Adaptive on-time, D-CAP™ control provides convenient and efficient operation. The device operates with supply input voltage ranging from 5.5 V to 24 V and supports output voltages of 5.0 V and 3.3 V. The TPS51225/B/C is available in a 20-pin, 3 mm × 3 mm, QFN package and is specified from –40°C to 85°C.
- FEATURES
- • Input Voltage Range: 5.5 V to 24 V
- • Output Voltages: 5 V and 3.3 V (Adjustable Range ±10%)
- • Built-in, 100-mA, 5-V and 3.3-V LDOs
- • Clock Output for Charge-Pump
- • ±1% Reference Accuracy
- • Adaptive On-time D-CAP™ Mode Control Architecture with 300kHz/355kHz Frequency Setting
- • Auto-skip Light Load Operation (TPS51225/C)
- • OOA Light Load Operation (TPS51225B)
- • Internal 0.8-ms Voltage Servo Soft-Start
- • Low-Side RDS(on) Current Sensing Scheme with 4500 ppm/°C Temperature Coefficient
- • Built-in Output Discharge Function
- • Separate Enable Input for Switchers(TPS51225/B/C)
- • Dedicated OC Setting Terminals
- • Power Good Indicator
- • OVP/UVP/OCP Protection
- • Non-latch UVLO/OTP Protection
- • 20-Pin, 3 mm × 3 mm, QFN (RUK)
- APPLICATIONS
- • Notebook Computers
- • Netbook, Tablet Computers
TPS51225CRUKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | WQFN-20 |
| Number of Outputs | 2 Output |
| Quiescent Current | 900 µA |
| Number of Regulated Outputs | 2 Output |
| Switching Frequency | 300kHz, 355kHz |
| Topology | Buck |
| Input Voltage (Max) | 24 V |
| Input Voltage (Min) | 5.5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5.5V ~ 24V |
| Input Voltage | 5.5V ~ 24V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
