DESCRIPTION
The HCC/HCF4541B Programmable Timer is composed of a 16-stage binary counter, an oscillator controlled by2 external resistorsand a capacitor, an output control logic and an automatic power-on reset circuit. The counter varies on positive-edge clock transation and it can be cleared by the MASTER RESET input. The output from this timer is the Q or Q output from the 8th, 13th, or 16th counter stage. The choice of the stage depends on the time select inputs A or B (see frequency selection table).
■ 16 STAGE BINARI COUNTER
■ LOW SYMMETRICAL OUTPUT RESISTANCE, TYPICALLY 100 OHM AT VDD = 15V
■ OSCILLATOR FREQUENCY RANGE : DC TO 100kHz
■ AUTO OR MASTER RESET DISABLES OSCILLATOR DURING RESET TO REDUCE POWER DISSIPATION
■ OPERATES WITH VERY SLOW CLOCK RISE AND FALL TIMES
■ BUILT-IN LOW-POWER RC OSCILLATOR
■ EXTERNAL CLOCK (applied to pin 3) CAN BE USED INSTEAD OF OSCILLATOR
■ OPERATES AS 2N FREQUENCY DIVIDER OR AS A SINGLE-TRANSITION TIMER
■ Q/Q SELECT PROVIDES OUTPUT LOGIC LEVEL FLEXIBILITY CAPABLE OF DRIVING SIX LOW POWER TTL LOADS, THREE LOW-POWER SCHOTTKY LOADS, PR SIX HTL LOADS OVER THE RATED TEMPERATURE RANGE
■ SYMMETRICAL OUTPUT CHARACTERISTICS
■ 100% TESTED FOR QUIESCENT CURRENT AT 20V
■ 5-10-15V PARAMETRIC RATINGS
■ MEETS ALL REQUIREMENTS OF JEDECTEN TATIVE STANDARD N 13A, ”STANDARD SPE CIFICATIONS FOR DESCRIPTION OF ’ B ’ SERIES CMOS DEVICES”

Show

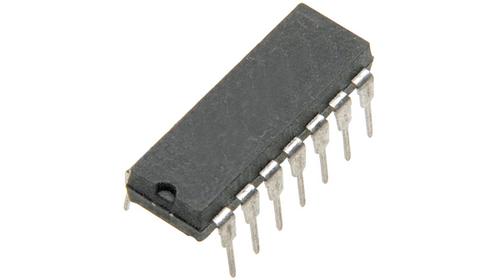

HCF4541BEY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	100 kHz
Supply Voltage (DC)	3.00V (min)
Number of Circuits	1 Circuit
Power Dissipation	200 mW
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
Supply Voltage	3V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	3 V
	Show
Size-Length	20 mm
Size-Width	7.1 mm
Size-Height	4.59 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
