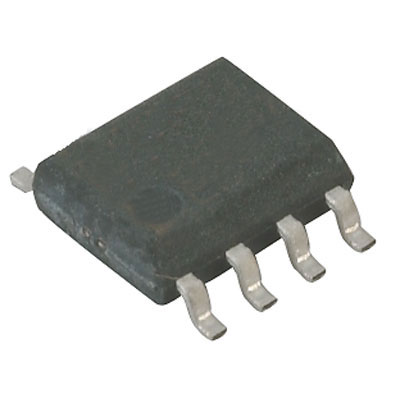

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 1 Circuit 8-SOIC
OP27GS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 5.70 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 170 mW |
| Common Mode Rejection Ratio | 100 dB |
| Bandwidth | 8.00 MHz |
| Slew Rate | 2.80 µV/μs |
| Gain Bandwidth Product | 8 MHz |
| Input Impedance | 2.00 GΩ |
| Input Offset Voltage | 30 µV |
| Input Bias Current | 15 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 8 MHz |
| Minimum CMRR Range | 100 dB |
| Supply Voltage (Max) | 22 V |
| Supply Voltage (Min) | 22 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
