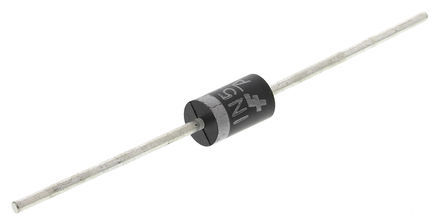

Image is for your reference only,please check specifications for details

SB540 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC13146742
Category:
TVS Diode
Package:
DO-201AD
Datasheet:
Datasheet 3D Model
Description:
SB540 Series 40V 5A Through Hole Schottky Barrier Rectifier - DO-201AD
Stock Locations:
Availability:
302 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SB540 is a glass passivated Schottky Barrier Rectifier features high current capability, low power loss and high efficiency. It is suitable for use in low voltage, high frequency inverters free wheeling and polarity protection applications.
High surge capacity
Metal to silicon rectifier and majority carrier conduction
5W Power dissipation
25°C/W Junction to ambient thermal resistance
500pF at 4V/1MHz Total capacitance

Show

SB540 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	40.0 V
Current Rating	5.00 A
Output Current	≤5.00 A
Number of Positions	2 Position
Forward Voltage	550mV @5A
Polarity	Standard
Power Dissipation	5 W
Thermal Resistance	25℃/W (RθJA)
Forward Current	5 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
	Show
Size-Length	9.53 mm
Operating Temperature	-50℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
