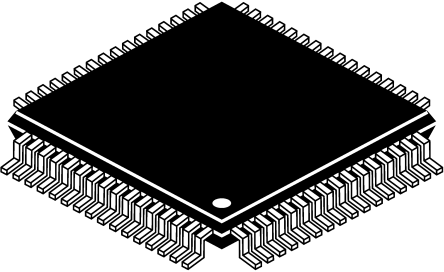

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADV7181C series high quality Video Decoder and Graphics Digitizer. This multi-format decoder supports the conversion of PAL, NTSC and SECAM standards in the form of composite or S-Video into a digital ITU-R BT.656 format. The ADV7181C also supports the decoding of a component RGB/YPrPb video signal into a digital YCrCb or RGB pixel output stream. SCART and overlay functionality are enabled by the ability of the ADV7181C to process simultaneously CVBS and standard definition RGB signals. The mixing of these signals is controlled by the fast blank pin. The ADV7181C contains two main processing sections. The first section is the standard definition processor (SDP), which processes all PAL, NTSC and SECAM signal types. The second section is the component processor (CP), which processes YPrPb and RGB component formats, including RGB graphics.
Four 10-bit ADCs sampling up to 110MHz
6 Analog input channels
SCART fast blank support
Internal antialias filters
NTSC, PAL and SECAM colour standards support
525p/625p component progressive scan support
720p/1080i component HDTV support
Digitizes RGB graphics up to 1024 x 768 at 70Hz (XGA)
3 x 3 colour space conversion matrix
12-bit 4:4:4 DDR, 8-/10-/16-/20-bit SDR pixel output interface
Programmable interrupt request output pin
Single front end for video and graphics
VBI data slicer (including teletext)

Show

ADV7181CBSTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Supply Voltage (DC)	3.15V (min)
Number of Circuits	4 Circuit
Number of Positions	64 Position
Number of Bits	10 Bit
Sample Rate	110 MHz
Resolution (Bits)	10.0 Bit
Number of ADCs	4 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	6 Channel
Supply Voltage (Max)	3.45 V
Supply Voltage (Min)	3.15 V
	Show
Size-Length	10.2 mm
Size-Width	10.20 mm
Size-Height	1.45 mm
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
