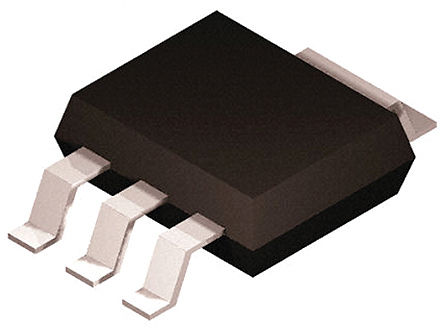

Image is for your reference only,please check specifications for details

Updated at 29/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSP77 E6433 is an N channel vertical Power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.
Logic level input
Input protection (ESD)
Thermal shutdown with auto restart
Overload protection
Short-circuit protection
Overvoltage protection
Current limitation
Analog driving possible
Green product

Show

BSP77 E6433 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Supply Voltage (DC)	0.00V(min), 10.0V(max)
Power Rating	3.8 W
Number of Outputs	1 Output
Output Current	2.8 A
Number of Positions	4 Position
Input Voltage (Max)	10 V
Output Current (Max)	2.17 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3800 mW
Supply Voltage	2.2V ~ 10V
Supply Voltage (Max)	10 V
Supply Voltage (Min)	0.2 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
