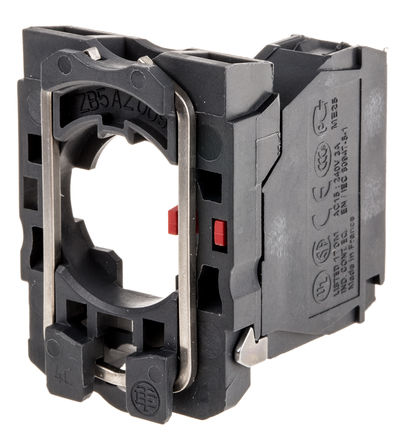

Image is for your reference only,please check specifications for details

ZB5AZ102 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC14650759
Category:
Switch Accessory
Datasheet:
Datasheet 3D Model
Description:
SCHNEIDER ELECTRIC ZB5AZ102 Switch Contact Block, XB5 Series Pushbutton Switches, 10A, 600V, 600V, Screw Clamp, 1Pole
Stock Locations:
Availability:
754 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZB5AZ102 is a 1NC Single Contact Block with body/fixing collar screw clamp terminal. It features slow-break contacts operation.
IP20 Protection rating (conforming to IEC 60529)
5gn (f = 2 to 500Hz) Conforming to IEC 60068-2-6 vibration resistance
2N Operating force
5000000 Cycles mechanical durability

Show

ZB5AZ102 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Current Rating	10 A
	Show
Material	Plastic
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/06/16
