Description

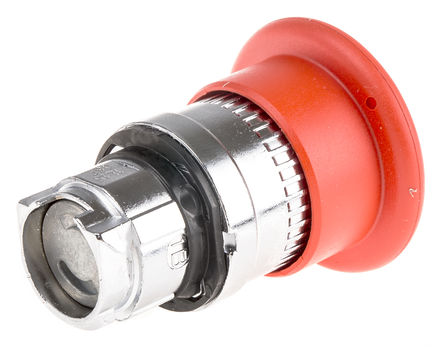

Red, XB4 22 mm Mushroom Head Pushbutton
XB4 22 mm push buttons, selector switches and pilot lights with metal bezel are designed for industrial applications and to combine ease of installation and robustness.
** Features**
* Simple and Secure Mounting Saves Time During Assembly
* Body Comprises of a Mounting Base with One or More Electrical Blocks and Can Be Fitted with Up to 9 Circuits
* Ergonomic Push Button Heads Ensure a Natural Center as Pressure Is Applied
* PROTECTED LED® — Light Modules that Offer 5 Different LED Colors with Built-In Circuit Protection
* 10 Amp, 600 V Contact Ratings
* UL, CSA and CE Marked
** Required for a Complete Switch:**
* Operator or Pilot Light
* Mounting Base with Contact Block(s)
* Mounting Base with Light Module — For Illuminated Operators or Pilot Lights
* Additional Contact Blocks, If Desired
* Lamp — For Direct Supply Light Modules
* E-Stop Legend Plate — If Desired for E-Stop Push Buttons
* 40 mm Diameter Mushroom Head, Red

Show

ZB4BT84 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
Size-Length	40 mm
Size-Width	40 mm
Color	Red
Operating Temperature	-25℃ ~ 70℃
Housing Material	Metal
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
