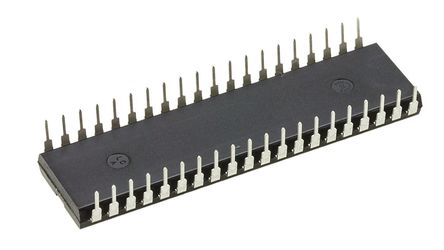

ICL7107CPLZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC1557607
Category:
Analog to Digital, ADC IC
Package:
DIP-40
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICL7107CPLZ Analog to Digital Converter, Dual, 3.5Bit, 3 SPS, Dual (+/-), -5V, 5V, DIP
Stock Locations:
Availability:
730 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL7107CPLZ is a high performance, low power, 3.5 digit A/D converter in 40 pin DIP package. It includes seven segment decoder, display drivers, reference and clock. The ICL7107 directly drives an instrument size light emitting diode (LED) display. It has auto zero to less than 10µV, zero drift of less than 1µV/°C, input bias current of 10pA and rollover error of less than one count. True differential inputs and reference are useful in all systems but give the designer an uncommon advantage when measuring load cells, strain gauges and other bridge type transducers.
Guaranteed zero reading for 0V input on all scales
True polarity at zero for precise null detection
1pA typical input current
Low noise of less than 15µV (peak to peak)
Typical conversion rate of 3SPS
Designed to work from ±5V supply
Low power dissipation of typically less than 10mW
No additional active circuits required
Enhanced display stability
Operating temperature range from 0°C to 70°C
This device is sensitive to electrostatic discharge. Users should follow proper IC handling procedures.
