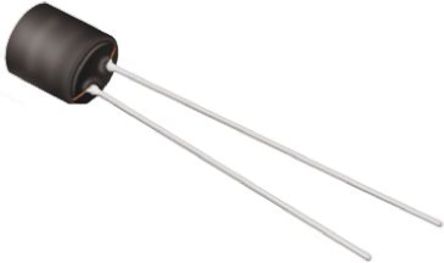

22R686C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC12787261
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 22R686C Inductor, 2200R Series, 68mH, 18mA, 242Ω, ± 10%
Stock Locations:
Availability:
231 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Resist changes in electric current flow in your electrical design with this general purpose 22R686C leaded inductor from Murata Power Solutions. This part has a pitch of 3 mm. This leaded inductor has an operating temperature range of -25 °C to 70 °C. This leaded inductor has a maximum DC current of 18m A with a maximum resistance of 242 Ohm. It has a tolerance of 10%. It has an inductance of 68m H. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 200K(Typ) Hz. This device utilizes wirewound technology. This product is 10.5 mm tall.

Show

22R686C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Current Rating	18 mA
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	68 mH
Self Resonant Frequency	200 kHz
Q-Factor	70.0
Resistance	242 Ω
Resonant Frequency	200 kHz
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤242 Ω
Current Rating (DC)	18 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Resistance (DC Max)	242 Ω
	Show
Size-Length	7.7 mm
Size-Height	10.5 mm
Lead Length	35 mm
Weight	1.3 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
