Description

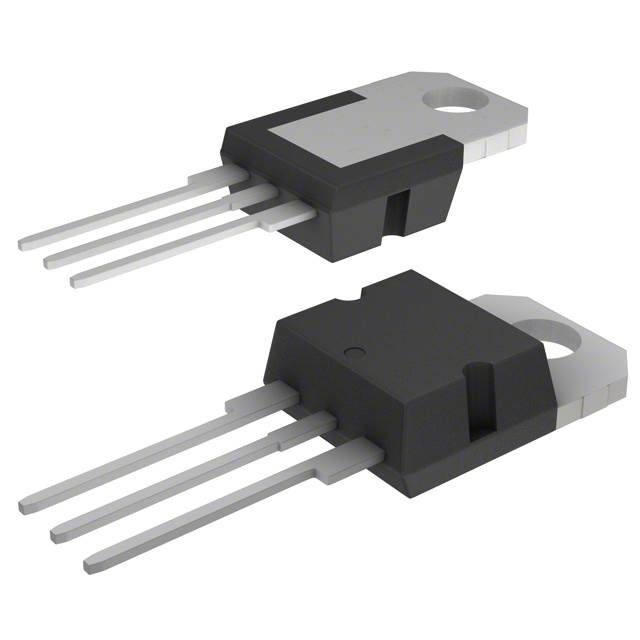

- N-Channel 68V 98A (Tc) 190W (Tc) Through Hole TO-220AB
STP80NF70 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 9.8 mΩ |
| Polarity | N-CH |
| Power Dissipation | 190 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 68 V |
| Breakdown Voltage (Drain to Source) | 68 V |
| Continuous Drain Current (Ids) | 98A |
| Rise Time | 60 ns |
| Input Capacitance (Ciss) | 2550pF @25V(Vds) |
| Input Power (Max) | 190 W |
| Fall Time | 75 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 190W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
