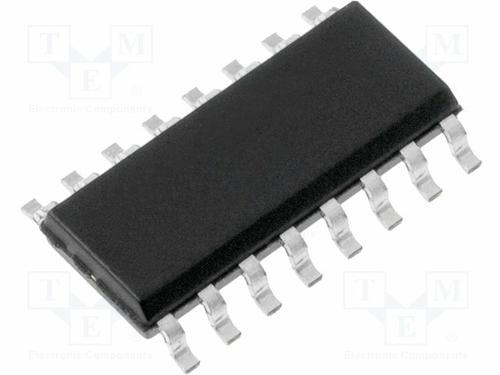

Image is for your reference only,please check specifications for details

74HC4053D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC19535327
Category:
Multiplexer IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
Analog Multiplexer Triple 2: 1 16Pin SOIC Analog Multiplexer Triple 2: 1 16Pin SOIC
Stock Locations:
Availability:
10,632 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC4053D is a triple single-pole double-throw (3x SPDT) Analog Switch suitable for use in analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). A digital enable input (E) is common to all switches. When E is high, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Low ON resistance - 80R, 70R, 60R (typical) at VCC-VEE = 4.5V, 6.0V, 9.0V respectively
Logic level translation to enable 5V logic to communicate with ±5V analog signals
Typical break before make built-in
Complies with JEDEC standard No. 7A

Show

74HC4053D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	9.00 V
Number of Outputs	6 Output
Contacts Type	SPDT
Number of Circuits	3 Circuit
Number of Positions	16 Position
Polarity	Non-Inverting
Power Dissipation	500 mW
Number of Gates	3 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	170 MHz
Power Dissipation (Max)	500 mW
Supply Voltage	2V ~ 10V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
