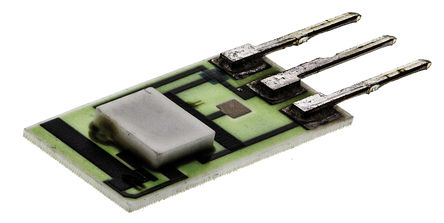

Image is for your reference only,please check specifications for details
- SS94A1 - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC1368107
-
Category:Hall Effect Sensor
-
Package:SIP-3
-
Datasheet:Datasheet 3D Model
-
Description:Honeywell Линейные датчики на эффекте Холла: Серия SS490, Недорогой миниатюрный рейтиометрический линейный датчик Холла, 3.125мВ/Г при 5В, Плоский корпус TO92, Формовочные выводы длиной 14,99мм [0.59in], Доступен в упаковке 5000 штук лента в коробке (аммопак)
-
Stock Locations:
-
Availability:208 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 26.05
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Микросхема датчика Холла SS94A1 обеспечивает повышенную температурную стабильность и производительность. Лазерная подстройка толстопленочных резисторов на керамической подложке и тонкопленочных резисторов на интегральной схеме уменьшает дрейф нуля и коэффициента усиления в зависимости от температуры, что обеспечивает стабильную чувствительность от одного устройства к другому. Выходной сигнал ограничивается по верхнему уровню. Напряжение ограничения может быть до 9 В постоянного тока. Выходное напряжение не превысит напряжение ограничения независимо от напряженности поля или напряжения питания.
- Однотактный линейный выход с поглощением или источником тока
- Улучшенная температурная стабильность
- Стандартные межцентровые расстояния для монтажа
- Лазерная подстройка тонкопленочных и толстопленочных резисторов минимизирует чувствительность и компенсирует
SS94A1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | SIP-3 |
| Supply Voltage (DC) | 12.0 V |
| Current Rating | 30.0 mA |
| Output Voltage | 4 V |
| Output Current | 1 mA |
| Supply Current | 30 mA |
| Number of Positions | 3 Position |
| Output Current (Max) | 1 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 6.6V ~ 12.6V |
| Supply Voltage (Max) | 12.6 V |
| Supply Voltage (Min) | 6.6 V |
| Input Voltage | 6.6.12.6 V |
| Show | |
| Size-Length | 7.6 mm |
| Size-Width | 15.2 mm |
| Lead Length | 6.86 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
| HTS Code | 8543704000 |
| ECCN Code | EAR99 |
