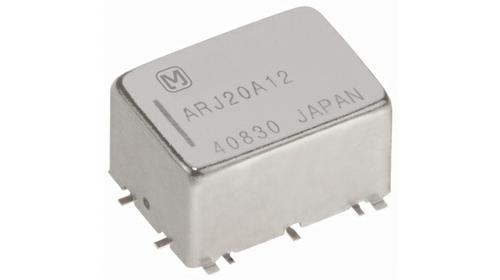

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SMD Relay, 0.3 A DC Rated Current, 30 VDC Voltage Rating, 2 Form C Contact Form
- * Excellent high frequency characteristics
- * Surface mount terminal
- * Small size
- Surface Mount. 200 mW (Nom.) power rating. Gold alloy contact material.
ARJ20A4H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Frequency | 5 GHz |
| Voltage Rating (DC) | 30 V |
| Current Rating | 300 mA |
| Power Rating | 1 W |
| Contacts Type | DPDT |
| Power Consumption | 200 mW |
| Contact Current Rating | 300 mA |
| Coil Voltage | 4.5 VDC |
| Coil Current | 44.4 mA |
| Coil Resistance | 101.2 Ω |
| Current Rating (Max) | 0.3 A |
| Coil Voltage (DC) | 4.5 V |
| Coil Power | 200 mW |
| Input Power (Max) | 1 W |
| Switching Current (Max) | 0.3 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 30 VDC |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 10.4 mm |
| Size-Height | 8.2 mm |
| Contact Material | Gold |
| Operating Temperature | -30℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410020 |
| ECCN Code | EAR99 |
