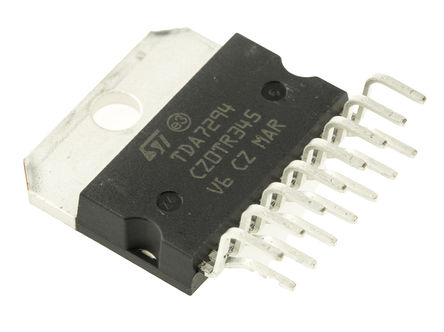

- TDA7294V - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC143981
-
Category:Audio Amplifier IC
-
Package:Multiwatt-15
-
Datasheet:Datasheet 3D Model
-
Description:Audio Power Amplifier, AB, 1Channel, 100W, ± 10V to ± 40V, Multiwatt, 15Pins
-
Stock Locations:
-
Availability:1,207 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.15
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TDA7294V is a DMOS audio amplifier with mute and standby function in Multiwatt15V package. This device is intended for use as audio class AB amplifier in Hi-Fi field applications. It is able to supply highest power into both 4ohm and 8ohm loads even in presence of poor supply regulation with high supply voltage rejection. The built-in mute function with turn-on delay simplifies the remote operation avoiding switching on-off noises.
- High output current capability
- Very high operating voltage range from ±10 to ±40V
- High output power up to 100W (music power)
- Input bias current of 500nA
- Quiescent current of 30mA
- Slew rate of 10V/µs
- Frequency response (-3dB) range from 20Hz to 20KHz
- Short circuit protection and thermal shutdown
- Very low noise and distortion
- Operating ambient temperature range from 0°C to 70°C
TDA7294V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | Multiwatt-15 |
| Supply Voltage (DC) | 100V (max) |
| Output Current | 10000 mA |
| Supply Current | 65.0 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 15 Position |
| Power Dissipation | 50000 mW |
| Quiescent Current | 30.0 mA |
| Gain Bandwidth Product | 20 kHz |
| Output Power | 100 W |
| Gain | 80 dB |
| Input Offset Voltage | 10 mV |
| Input Bias Current | 500 nA |
| Output Current (Max) | 10000 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 50000 mW |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
