ADP3335 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1205310374
Datasheet:
Datasheet 3D Model
Description:
High Accuracy Ultralow Quiescent Current, 500mA, anyCAP Low Dropout
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

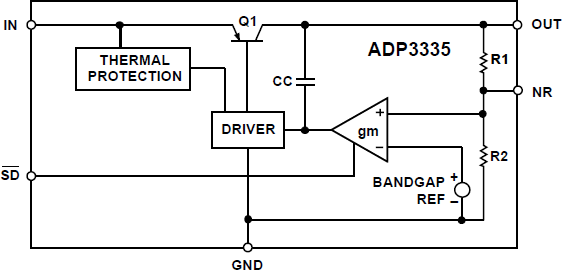

The ADP3335 is a member of the ADP330x family of precision low dropout anyCAP voltage regulators. The ADP3335 operates with an input voltage range of +2.6 V to +12 V and delivers a continuous load current up to 500 mA. The ADP3335 stands out from the conventional LDOs with the lowest thermal resistance of any MSOP-8 package and an enhanced process that enables it to offer performance advantages beyond its competition. Its pat-ented design requires only a 1.0 µF output capacitor for stability. This device is insensitive to output capacitor Equivalent Series Resistance (ESR), and is stable with any good quality capacitor, including ceramic (MLCC) types for space-restricted applications. The ADP3335 achieves exceptional accuracy of ±0.9% at room temperature and ±1.8% over temperature, line and load variations. The dropout voltage of the ADP3335 is only 200 mV (typical) at 500 mA. This device also includes a safety current limit, thermal overload protection and a shutdown feature. In shutdown mode, the ground current is reduced to less than 2 µA. The ADP3335 has ultralow quiescent current 60 µA (typ) in light load situations.
### Features and Benefits
High accuracy over line and load: ±0.9% @ 25°C, ±1.8% over temperature
Ultralow dropout voltage: 200 mV (typ) @ 500 mA
Requires only CO = 1.0 µF for stability
anyCAP = stable with any type of capacitor (Including MLCC)
Current and thermal limiting
Low noise
Low shutdown current: < 10 nA (typ)
2.6 V to 12 V supply range
–40°C to +85°C ambient temperature range

Show

ADP3335 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
Product Lifecycle Status	Active
