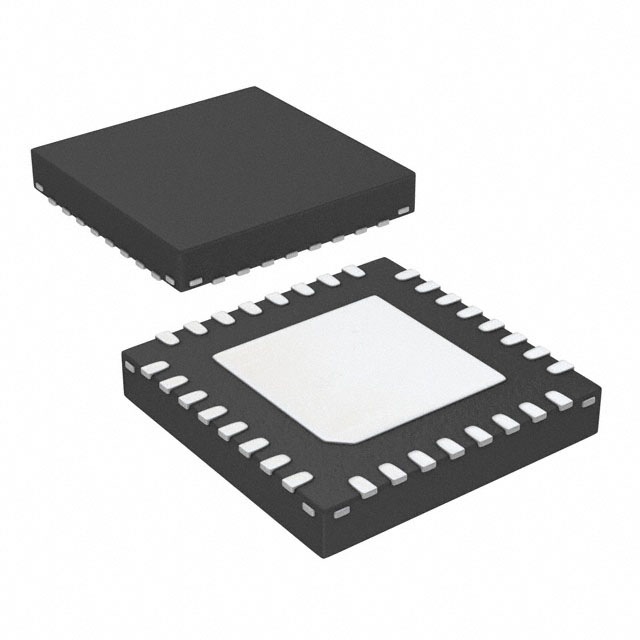

Image is for your reference only,please check specifications for details

HMC1133LP5E - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC4913374
Category:
RF Module, IC, Accessory
Package:
QFN-32
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC1133LP5E Special Function IC, Phase Shifter, GaAs MMIC 6Bit, 4.8GHz to 6.2GHz, -0.2V to +7V, QFN-32 New
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The HMC1133LP5E is a 6-bit digital phase shifter which is rated from 4.0 to 7 GHz, providing 360 degrees of phase coverage, with a LSB of 5.625 degrees. The HMC1133LP5E features very low RMS phase error of 2.8 degrees and extremely low insertion loss variation of ±0.4 dB across all phase states. This high accuracy phase shifter is controlled with positive control logic of 0/+5V The HMC1133LP5E is housed in a compact 5x5 mm plastic leadless SMT package and is internally matched to 50 Ohms with no external components.
Applications
EW Receivers
Weather & Military Radar
Satellite Communications
Beamforming Modules
Phase Cancellation
### Features and Benefits
Low RMS Phase Error: 2.8°
Low Insertion Loss: 5 dB
High Linearity: +46 dBm
Positive Control Logic
360° Coverage, LSB = 5.625°
32 Lead 5x5mm SMT Package: 25mm2

Show

HMC1133LP5E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	32 Pin
Case/Package	QFN-32
Frequency	8GHz ~ 12GHz
Number of Bits	6 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
