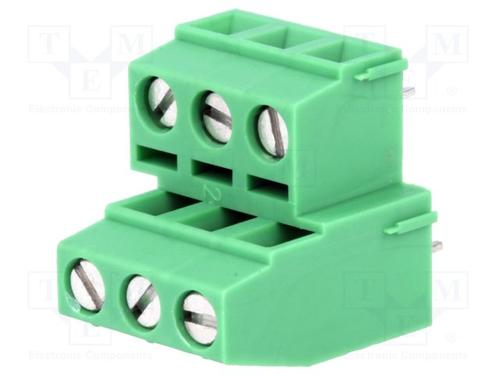

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 1726066 is a 3-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKKDSN 1,5/ 3-5,08 terminal block has fully developed contact geometries and surfaces. It accepts 26 to 16AWG wire range.
- Space-saving and safe
- Offset levels for optimum access to the terminal points
- Compact housing dimensions and low design height
- Double-level type with high packing and connection density
- 6mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
1726066 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Pin Pitch | 5.08 mm |
| Number of Contacts | 9 Contact |
| Wire Gauge | 14AWG ~ 30AWG |
| Voltage Rating (AC) | 250 V |
| Current Rating | 13.5 A |
| Number of Rows | 2 Row |
| Orientation | Right Angle |
| Number of Circuits | 9 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 3 Position |
| Current Rating (Max) | 13.5 A |
| Voltage Rating (Max) | 250 V |
| Voltage Rating | 400 V |
| Show | |
| Size-Length | 17.78 mm |
| Size-Width | 18.3 mm |
| Size-Height | 19.1 mm |
| Housing Color | Green |
| Color | Green |
| Housing Material | Nylon |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
