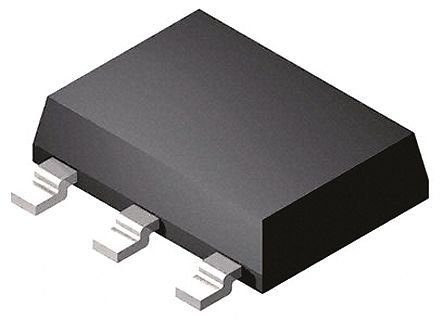

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

PZTA96ST1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Number of Positions	4 Position
Polarity	PNP, P-Channel
Power Dissipation	1.5 W
Breakdown Voltage (Collector to Emitter)	450 V
hFE Min	50 @10mA, 10V
Input Power (Max)	1.5 W
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1500 mW
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.65 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
