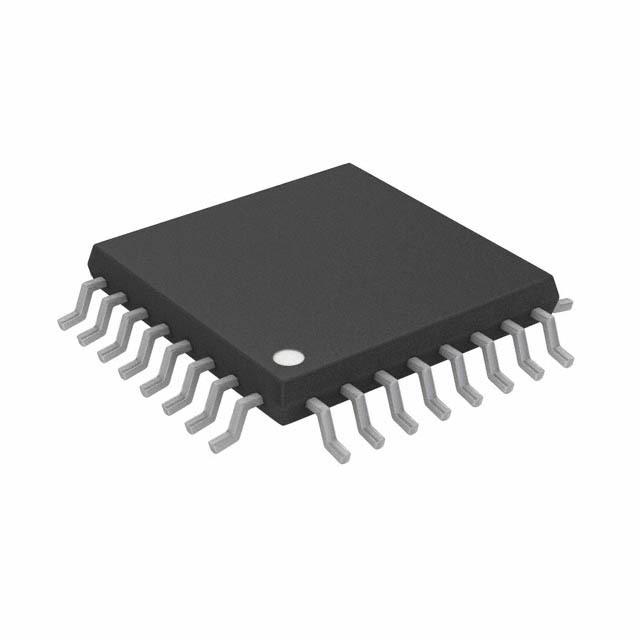

Image is for your reference only,please check specifications for details
- AD5764CSUZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC398723
-
Category:Digital to Analog, DAC IC
-
Package:TQFP-32
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter, 16Bit, 1.26MSPS, Serial, ± 11.4V to ± 16.5V, QFP, 32Pins
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 205.47
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AD5764CSUZ is a quad 16-bit serial input bipolar voltage output Digital-to-analog Converter (DAC) operates from supply voltages of ±11.4 to ±16.5V. Nominal full-scale output range is ±10V. The AD5764 provides integrated output amplifiers, reference buffers and proprietary power-up/power-down control circuitry. The part also features a digital I/O port that is programmed via the serial interface. The part incorporates digital offset and gain adjust registers per channel. It uses a serial interface that operates at clock rates of up to 30MHz and is compatible with DSP and microcontroller interface standards. Double buffering allows the simultaneous updating of DAC. The input coding is programmable to either twos complement or offset binary formats. The asynchronous clear function clears the data register to either bipolar zero or zero scale depending on the coding used. The AD5764 is ideal for both closed-loop servo control and open-loop control applications.
- Integrated reference buffers
- Output control during power-up/brownout
- Programmable short-circuit protection
- Simultaneous updating via LDAC
- Asynchronous CLR to zero code
- Digital offset and gain adjust
- Logic output control pins
- DSP-microcontroller-compatible serial interface
- iCMOS™ process technology
AD5764CSUZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | TQFP-32 |
| Supply Voltage (DC) | 16.5V (max) |
| Number of Outputs | 4 Output |
| Supply Current | 3.5 mA |
| Number of Channels | 4 Channel |
| Number of Positions | 32 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 381 mW |
| Sample Rate | 1.26 Msps |
| Resolution (Bits) | 16.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 275 mW |
| Number of DACs | 4 DAC |
| Supply Voltage (Max) | 16.5 V |
| Supply Voltage (Min) | 11.4 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
