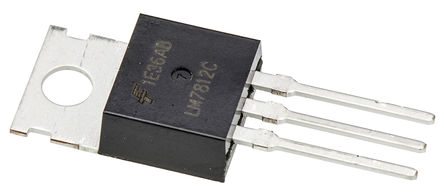

Image is for your reference only,please check specifications for details

LM7812CT - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7707569
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR LM7812CT. Linear Voltage Regulator, 7812, Fixed, LDO, Positive, 19V To 35V In, 12V And 1A Out, TO-220-3
Stock Locations:
Availability:
10,751 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM7812CT three terminal positive regulator employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
Output current up to 1 A
Thermal overload protection
Short-circuit protection
Output transistor safe operating area protection

Show

LM7812CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Output Voltage	12 V
Output Current	1 A
Number of Positions	3 Position
Quiescent Current	5.1 mA
voltage rating	2V @1A
Input Voltage (Max)	35 V
Input Voltage (Min)	19 V
Output Voltage (Max)	12.5 V
Output Voltage (Min)	11.5 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Supply Voltage (Max)	40 V
Supply Voltage (Min)	14.5 V
Input Voltage	≤35 V
	Show
Size-Length	10.16 mm
Size-Width	4.7 mm
Size-Height	8.89 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
