Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 2 Pin |

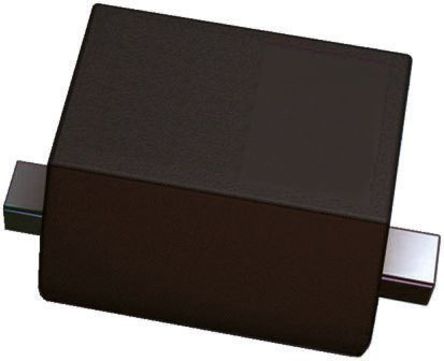

Case/Package | SOD-523 |
Number of Positions | 2 Position |
Forward Voltage | 800mV @100mA |
Thermal Resistance | 500℃/W (RθJA) |
Reverse recovery time | 5 ns |
Forward Current | 200 mA |
Max Forward Surge Current (Ifsm) | 4 A |
Maximum Forward Voltage (Max) | 800 mV |
Forward Current (Max) | 200 mA |
Operating Temperature (Max) | 125 ℃ |
Junction Temperature | 125℃ (Max) |
Show | |
Size-Length | 1.3 mm |
Size-Width | 0.9 mm |
Size-Height | 0.7 mm |
Weight | 0.004535924 kg |
Operating Temperature | -65℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
